Sapphire Tube Thermocouple Protection Sleeve Sapphire Sealing Tube

Name: Sapphire Tube Thermocouple Protection Sleeve Sapphire Sealing Tube
Brand: ZMSH
Price: 1 USD

Sapphire Tube Thermocouple Protection Sleeve Sapphire Sealing Tube Manufactures

Brand Name : ZMSH

Model Number : Sapphire ingot pipe rod

Certification : ROHS

Place of Origin : China

MOQ : 2pcs

Price : by case

Payment Terms : T/T, Western Union

Supply Ability : 3000pcs per month

Delivery Time : 1-2weeks

Packaging Details : plastic bag

material : Sapphire crystal

surface : optical polished rough blank

Product : Sapphire tube pipe rod

hardness : Mohs 9.0

Technology : EFG

Melting point : 2050°C

Working temperature : 1950°C

Purity : 99.995%

Contact Now

Sapphire tubes are sealed by continuing the crystal growing process. This assures flawless material integrity and faultless structure throughout the whole thermocouple tube.

Features:

Hard & durable – Hardness, strength, and resistance are the best among all optical materials.
Wide spectral range – Transmits from 0.20 µm through VIS to 3.5 µm, for use in IR optical systems, operating in the NIR and MW spectral regions.
Rhombohedral crystal structure – Highly anisotropic, so optical and mechanical properties vary with the crystal orientation.
Ideal for optics in harsh environments – Performs in high heat, extreme pressure, exposure to harmful chemicals and gases, and other harsh conditions with damaging and destructive forces.
Many crystal growth methods – Material produced by different growth technologies can have different attributes making one type better suited for certain applications than another.

Application:

Sapphire Tube: MW Plasma Etching Spectroscopy Laser/illumination systems Semiconductor Mfg, Optics, Defense / Aerospace, Medical, Electronics

Sapphire Rod / Pin: Guide Pin, Lift Pin for wafer mfg Semi Mfg. Chamber Component Industrial component, Semiconductor Mfg, Electronics

Sapphire Dome: Missle cone Camera dome Button, lens Protective window cove defense / Aerospace, Power & Energy, Consumer Technology

Sapphire Ingot / Core: Optical Media Raw Material Research & Higher Ed.; Optics & Photonics

GENERAL
Chemical Formula	Al2O3
Crystal Stucture	Hexagonal System (hk o 1)
Unit Cell Dimension	a=4.758 Å,Å c=12.991 Å, c:a=2.730
PHYSICAL
	Metric	English (Imperial)
Density	3.98 g/cc	0.144 lb/in3
Hardness	1525 - 2000 Knoop, 9 mhos	3700° F
Melting Point	2310 K (2040° C)
STRUCTURAL
Tensile Strength	275 MPa to 400 MPa	40,000 to 58,000 psi
Tensile Strength at 20° C		58,000 psi (design min.)
Tensile Strength at 500° C		40,000 psi (design min.)
Tensile Strength at 1000° C	355 MPa	52,000 psi (design min.)
Flexural Stength	480 MPa to 895 MPa	70,000 to 130,000 psi
Compression Strength	2.0 GPa (ultimate)	300,000 psi (ultimate)

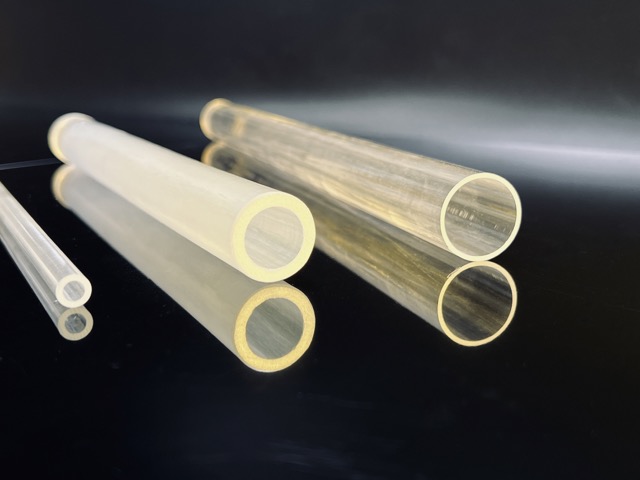

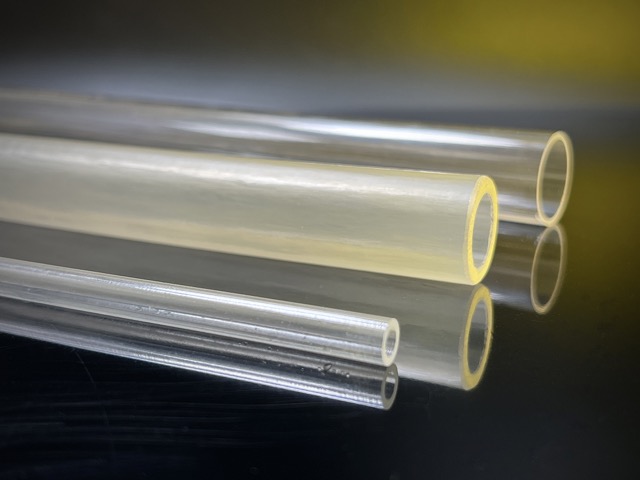

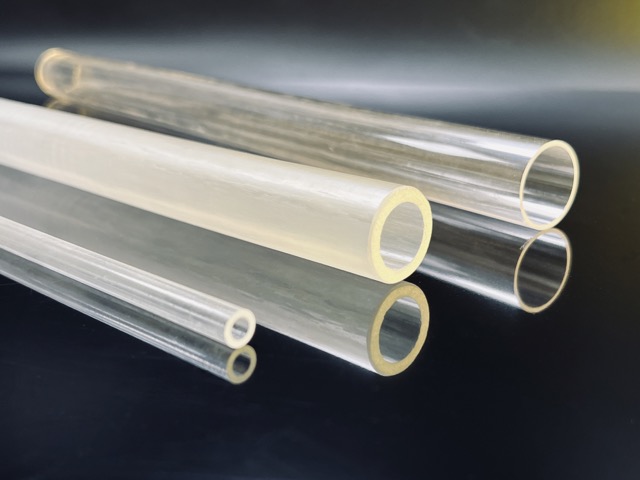

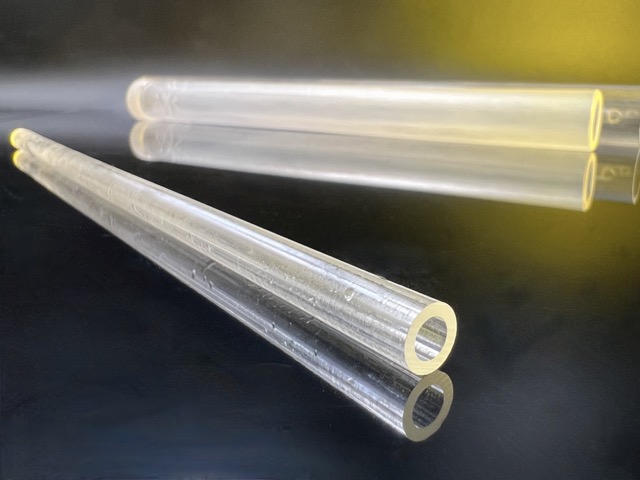

Sapphire parts products in detail:

Sapphire Tube Thermocouple Protection Sleeve Sapphire Sealing Tube

Recommend Products:
2inch GSGG 2inch YAG 2inch MgO

FAQ
Q: How to pay?
A: T/T, Paypal, Secure payment and Assurance payment.
Q: What's your MOQ?
A: (1) For inventory, the MOQ is 1pcs.
(2) For customized products, the MOQ is 3pcs up.
Q: What's the delivery time?
A: (1) For the standard products
For inventory: the delivery is 5 workdays after you place the order.
For customized products: the delivery is 2 -4 weeks after you order contact.
